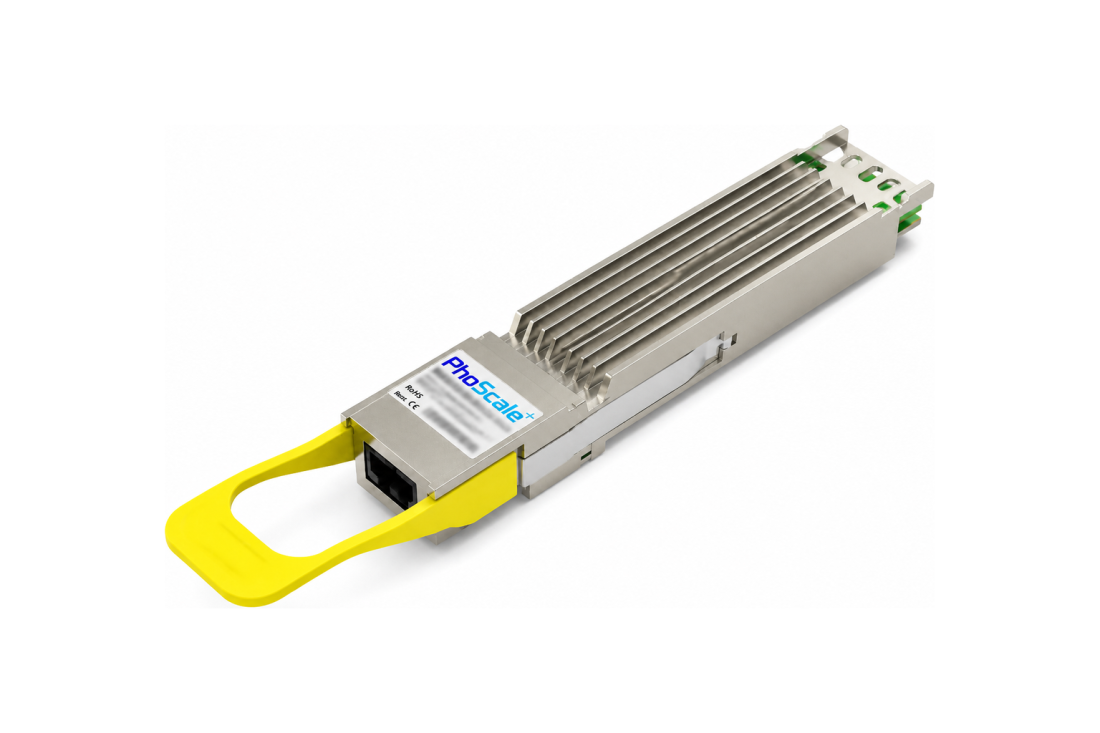

800G OSFP112 2×VR4 IHS(Finned-top)
800G Optical Transceiver

800G OSFP112 2×VR4 IHS(Finned-top)

SKU / P/N: PHOS-8OFM2V50M121
800G 2*VR4 optical transceiver for AI data center, GPU cluster, reseller and system-integrator projects.
Data Rate
8x106.25Gbps
Form Factor
Dual-port OSFP IHS（Finned-top）
Standard
2*VR4
Reach
30m @ OM3 / 50m @ OM4 or OM5
Connector
Dual MPO-12/APC
Max Power
16W
Spot Available Lead time: 2–4 weeks
Bulk package:
Custom Quote
Custom bulk order? Beyond 2000 pcs, mixed models or annual supply — use Custom Quote to negotiate your discount offline.

Bulk availability changes frequently. Discounts shown are indicative volume tiers — submit an RFQ to confirm the latest price, lead time and allocation. Prices are provided by quote — no public list price.

Link-up guaranteedCoded to any switch / NIC platform
Lifetime warrantyAdvance replacement
Ships from US warehouseFast, no import hassle
Per-unit testedTest report + power-on video

Product description

This NVIDIA/Mellanox InfiniBand-compatible OSFP transceiver is an 800Gbps twin-port OSFP IHS/finned-top 2×VR4 multimode module with dual MPO-12/APC connectors and 100G-PAM4 modulation, supporting link lengths of up to 50 m over multimode fiber.

The module meets InfiniBand NDR end-to-end system certification and supports deployment on 2×400G InfiniBand switches. Paired with a 1:2 breakout cable, it enables a 2×400G breakout mode by activating two optical channels on each branch path, delivering lower power consumption and flexible breakout connectivity. With high-bandwidth transmission and ultra-low BER, it is optimized for supercomputing, AI and HPC environments and is seamlessly compatible with H100/H200 platforms.

Product highlights

  • Integrated low-power DSP for stable performance at scale
  • Optimized power budget, max power consumption 16W
  • Compliant with OSFP MSA 5.0 and IEEE802.3ck and IEEE 802.3df standards
  • Supports breakout to lower-rate links for flexible fabric design
  • Tested on live switch / NIC platforms to ensure performance, quality and reliability

Applications

  • AI data center & GPU cluster interconnect
  • Spine-leaf switching fabric
  • Short-reach in-rack and adjacent-rack connections
  • Hyperscale, cloud and high-performance computing networks

Supply status meaning

In stock or short-notice availability

Data Rate8x106.25Gbps
Max Data Rate8x106.25Gbps
Form FactorDual-port OSFP IHS（Finned-top）
Standard2*VR4
Lanes8
Rate per Lane106.25Gbps PAM4
Reach30m@OM3 / 50m@OM4 or OM5
MediaMMF
Fiber TypeOM3 / OM4 / OM5
ConnectorDual MPO-12/APC
Connector PolishAPC
Wavelength850nm
Max Power16W
Operating Temperature0 to 70C (32 to 158F)
Optical Modulation8x100G-PAM4
Electrical Modulation8x100G-PAM4
FECInbuilt FEC: Yes
IEEE ComplianceIEEE802.3ck 和 IEEE 802.3df
MSA ComplianceOSFP MSA 5.0
ProtocolsInfiniBand XDR,OSFP MSA 5.0,IEEE802.3ck 和 IEEE 802.3df,CMIS5.2
Host InterfaceDual-port OSFP /800G
Thermal / ShellIHS(Finned-top)
Warranty5

Four bulk tiers — the larger the volume, the better the discount. Actual pricing is confirmed by RFQ based on quantity, customer tier and lead time; there is no single-unit retail.

PackageQuantityVolume discountBest for
Starter Pack 100 pcs Base bulk price Trial order / small channel Request Quote
Growth Pack 500 pcs Save ~5% vs. Starter Reseller / regular supply Request Quote
Project Pack Popular 1000 pcs Save ~10% vs. Starter AI data center project Request Quote
Strategic Pack 2000 pcs Save ~15% vs. Starter Annual / channel agreement Request Quote
Custom bulk order 2000+ pcs Negotiated offline Annual / strategic supply Contact Sales

Ask a compatibility question

Need this model to match a specific switch, NIC or OEM coding? Send us the platform and we'll confirm compatibility and coding options.

  • Compatible coding for major switch / NIC platforms on request
  • Alternative model recommendations
  • Breakout and cabling guidance
